WKT and WKB (OGC Simple Features)

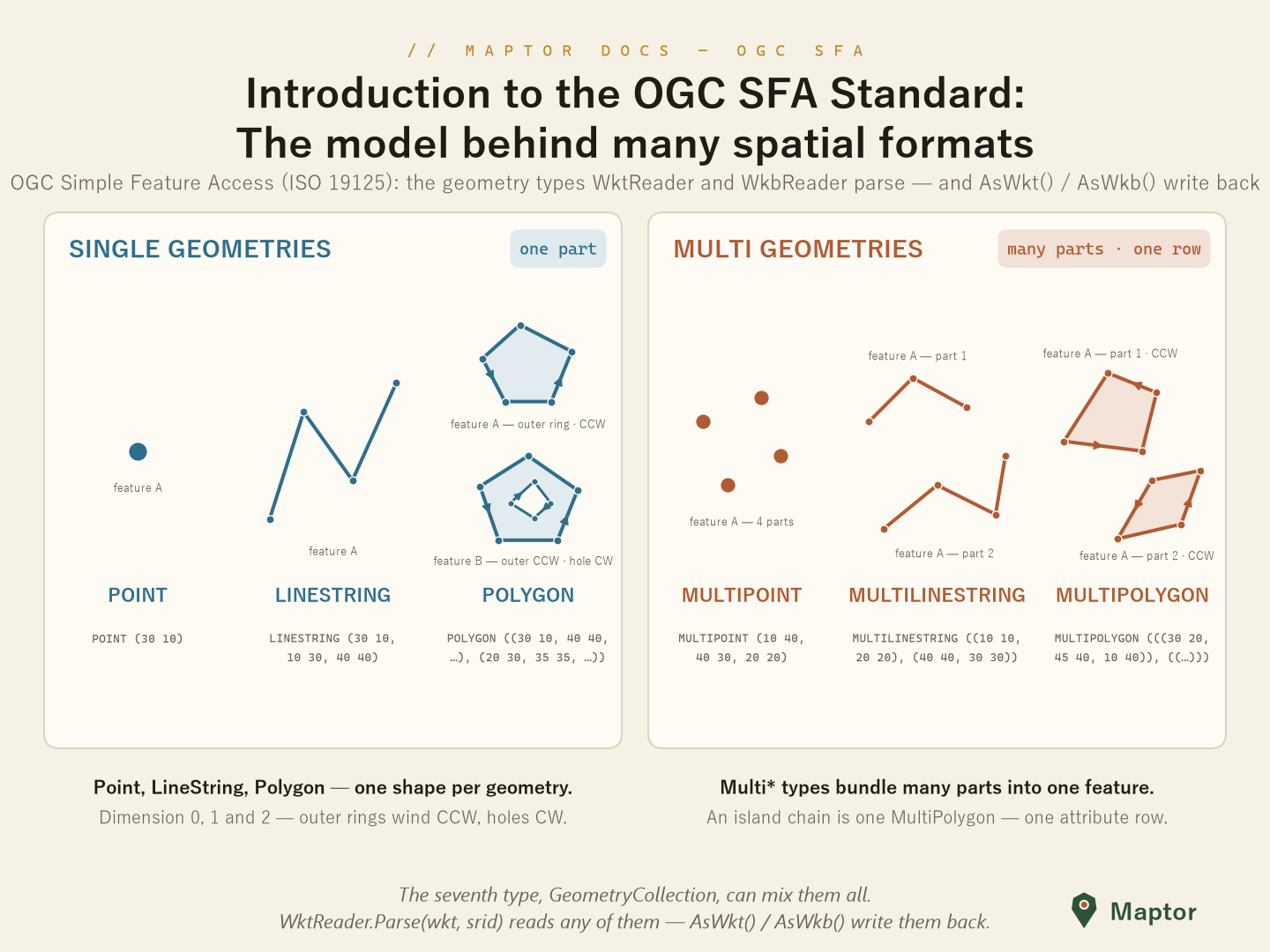

OGC Simple Feature Access (ISO 19125) serialization for Geometry<T> — one geometry model, three encodings: OGC Well-Known Text, Well-Known Binary, and SQL Server's WKT dialect.
Supported capabilities
| Capability | Supported |
|---|---|
| OGC WKT read | Yes — WktReader.Parse |
| OGC WKT write | Yes — geometry.AsWkt() |
| WKB read | Yes — Geometry<T>.FromWkb / WkbReader.Parse |
| WKB write | Yes — geometry.AsWkb() |
| SQL Server WKT read | Yes — SqlServerWktReader.Parse |
| SQL Server WKT write | Yes — geometry.AsSqlServerWkt() |
| Z / M / ZM dimensions | Yes (WKT dimension suffixes) |

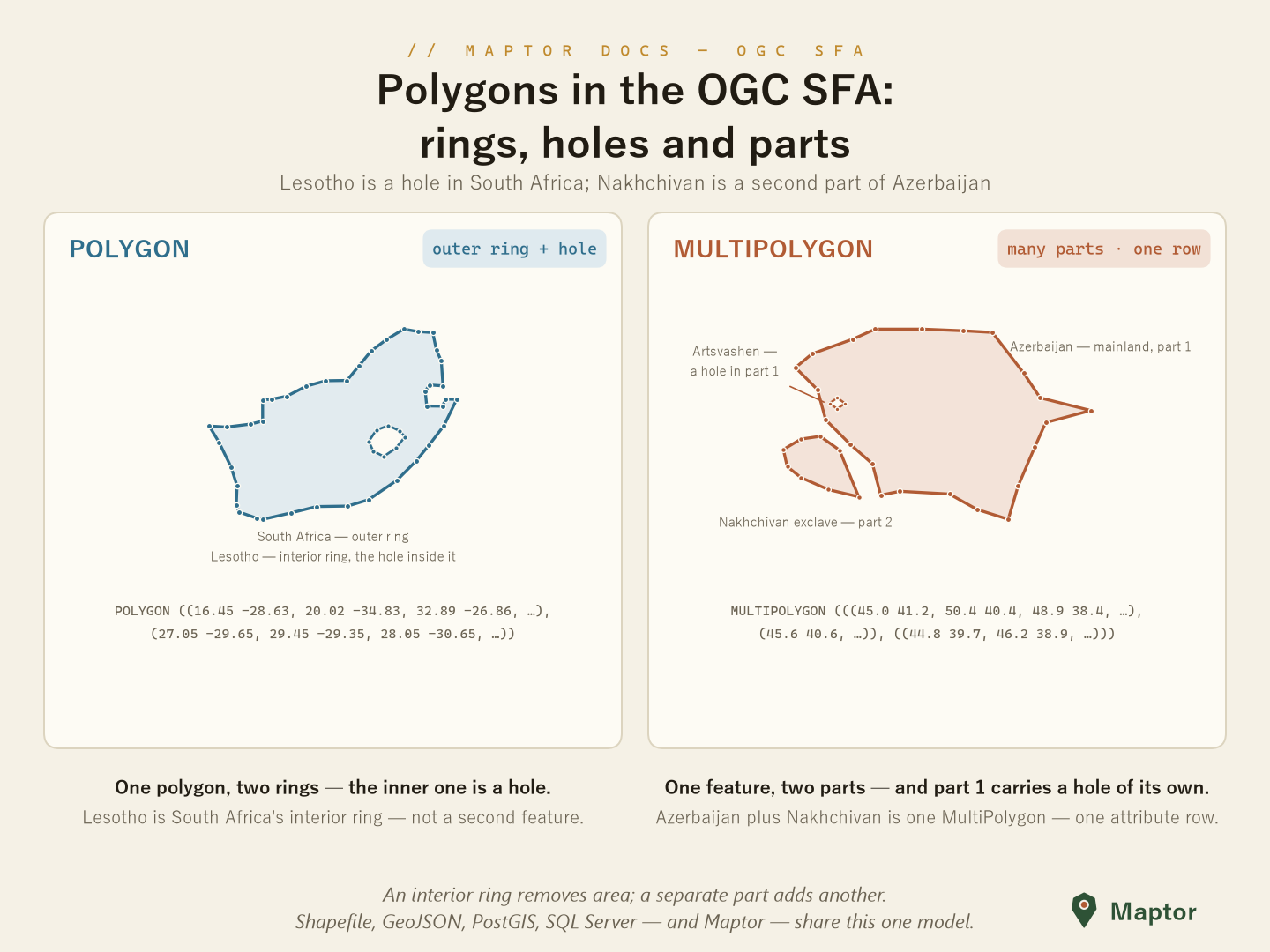

A polygon's rings carry two different meanings: an interior ring is a hole in the same polygon, while a second exterior ring is a separate part of a MultiPolygon.
Usage
WKT — Well-Known Text
WktReader parses OGC-compliant WKT, including the Z / M / ZM dimension suffixes; AsWkt() writes it back.
using IRI.Maptor.Core.Spatial.IO.OgcSFA;
var geometry = WktReader.Parse("POINT Z (1 2 3)", srid: 4326);
string wkt = geometry.AsWkt(); // "POINT Z (1 2 3)"
WKB — Well-Known Binary

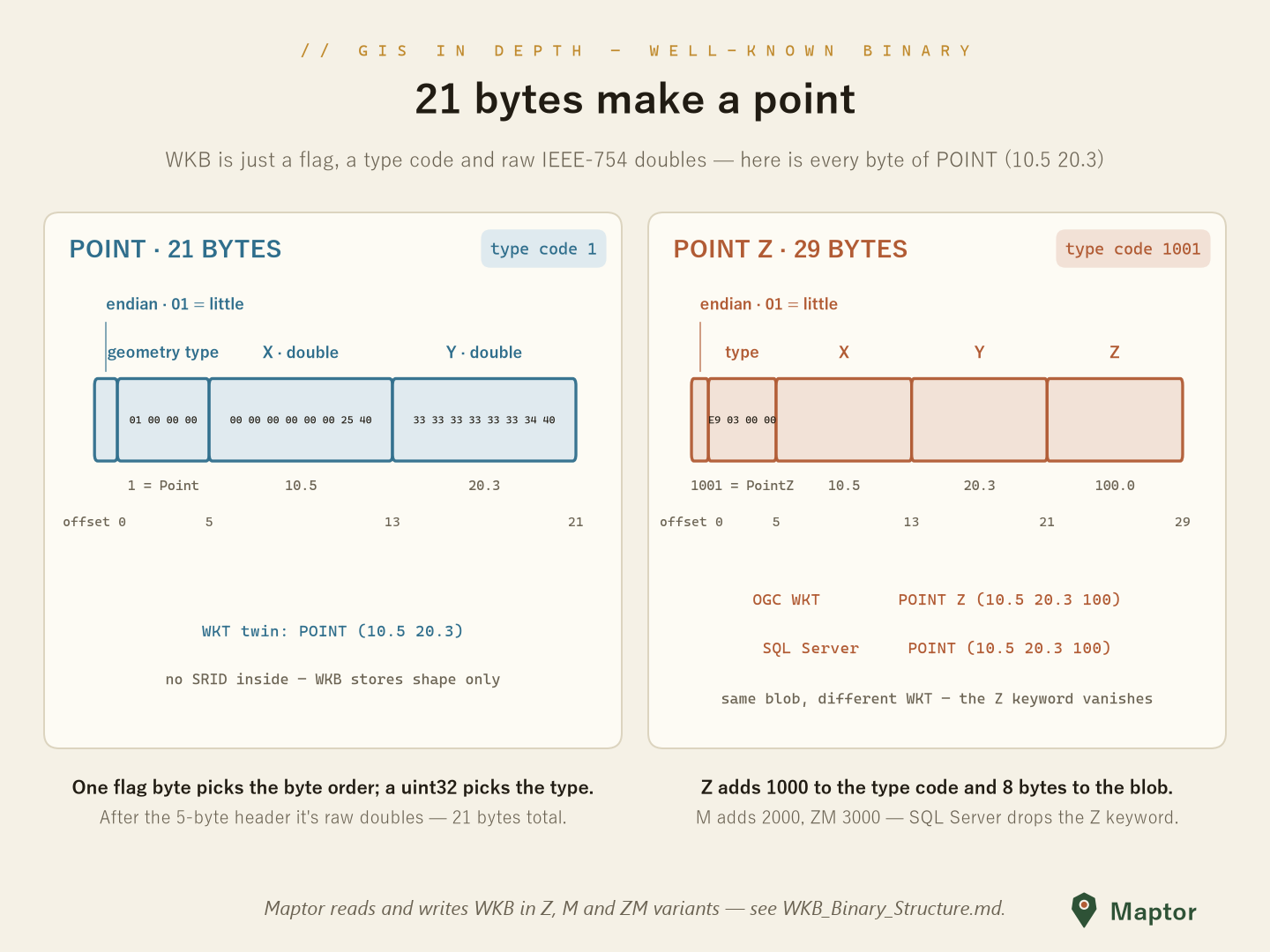

The compact binary twin: one byte-order flag, a uint32 geometry type, then raw double coordinates.
byte[] wkb = geometry.AsWkb(); // POINT: 21 bytes = order(1) + type(4) + x(8) + y(8)
var restored = Geometry<Point>.FromWkb(wkb, srid: 4326);
Byte-level layout of every geometry type: WKB_Binary_Structure.md.
The SQL Server dialect
SQL Server writes WKT without dimension suffixes — the dimension is inferred from the coordinate count (POINT (1 2 3) instead of OGC's POINT Z (1 2 3)). SqlServerWktReader / AsSqlServerWkt() speak that dialect, so converting is a read in one and a write in the other:
var g = SqlServerWktReader.Parse("POINT (1 2 3)");
string ogc = g.AsWkt(); // "POINT Z (1 2 3)"
string sql = g.AsSqlServerWkt(); // "POINT (1 2 3)"
Full comparison (dimension detection, MULTIPOINT nesting, when to use which): WKT_SqlServer_Differences.md.
The OGC object model
The interchange types the WKB layer is built around — OgcPoint, OgcLineString, OgcPolygon, the Multi* classes and the WkbGeometryType enum — live in the IRI.Maptor.Core.Ogc.SFA namespace of the IRI.Maptor.Core.Ogc project.
